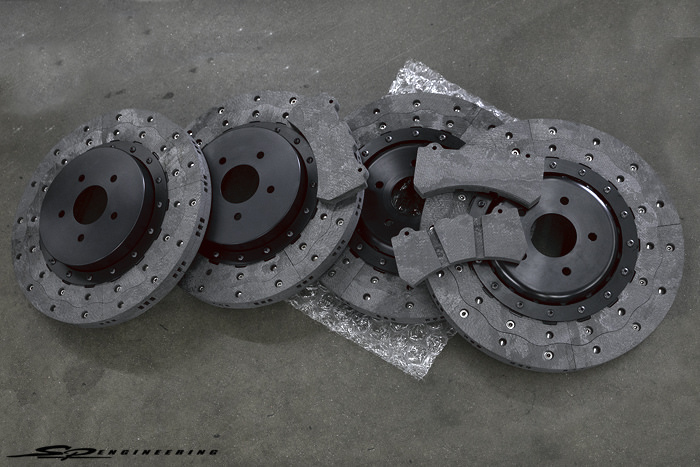

Product Release: Nissan GT-R RPS Carbon-Carbon Brake Kit

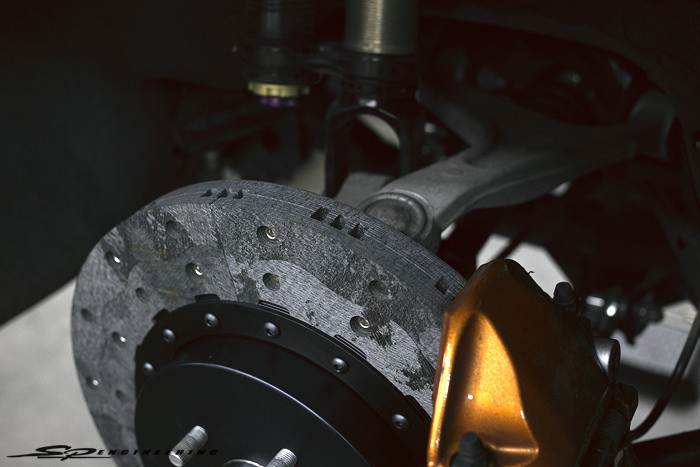

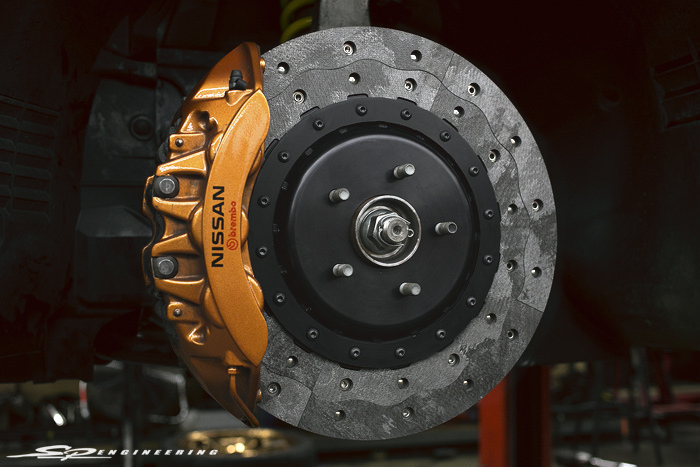

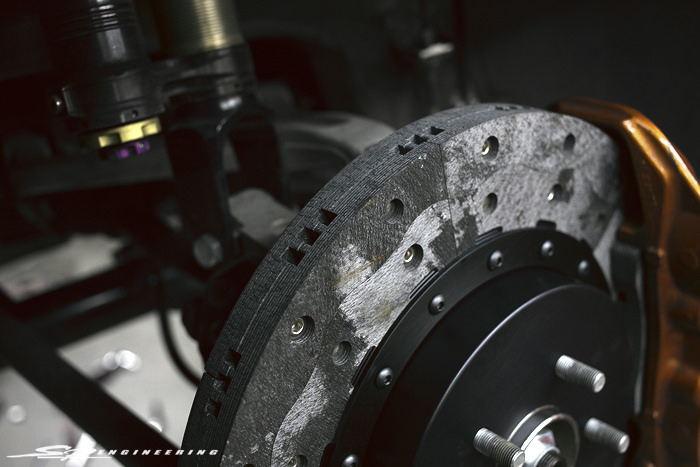

 Good day, SP readers!  This past year we’ve attended two Shift-S3ctor events hosted at the Coalinga Municipal Airport Strip in Coalinga, CA.  Having done these 2 events alongside our customers, it allowed us to retain valuable information that needed to be addressed in the future.  While having 1600WHP and clocking over 200MPH is badass, it won’t do you any good if you don’t have proper brakes to back it up.  This is where we’ve decided to ditch the brake setup we previously had and went with RPS Carbon brakes for Sean’s Midnight Opal Godzilla.  Sean claimed it was very difficult to slow down his Godzilla in time and even had a couple close calls with locking up the brakes and nearly missing the exit turn at the end of the runway.

Good day, SP readers!  This past year we’ve attended two Shift-S3ctor events hosted at the Coalinga Municipal Airport Strip in Coalinga, CA.  Having done these 2 events alongside our customers, it allowed us to retain valuable information that needed to be addressed in the future.  While having 1600WHP and clocking over 200MPH is badass, it won’t do you any good if you don’t have proper brakes to back it up.

This is where we’ve decided to ditch the brake setup we previously had and went with RPS Carbon brakes for Sean’s Midnight Opal Godzilla.  Sean claimed it was very difficult to slow down his Godzilla in time and even had a couple close calls with locking up the brakes and nearly missing the exit turn at the end of the runway.

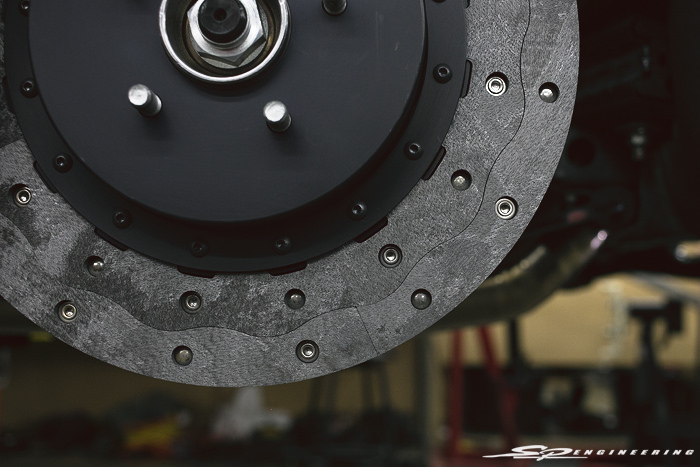

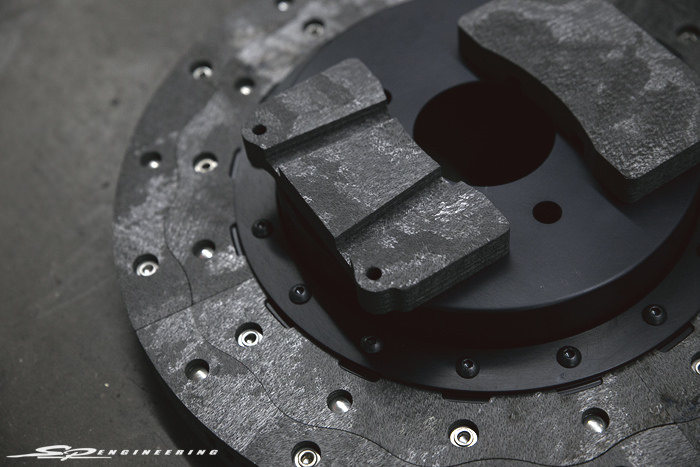

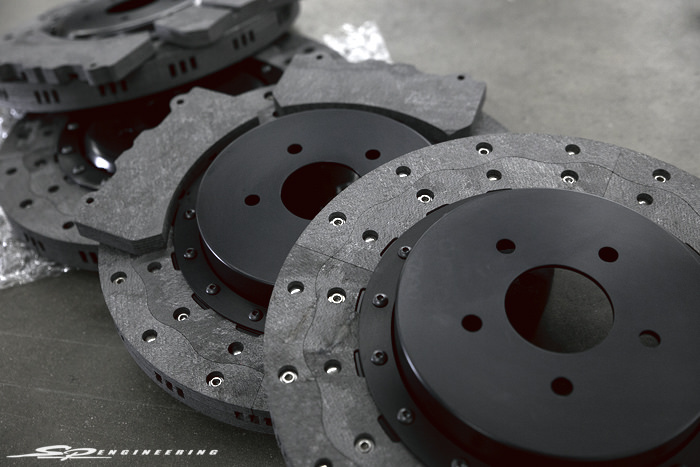

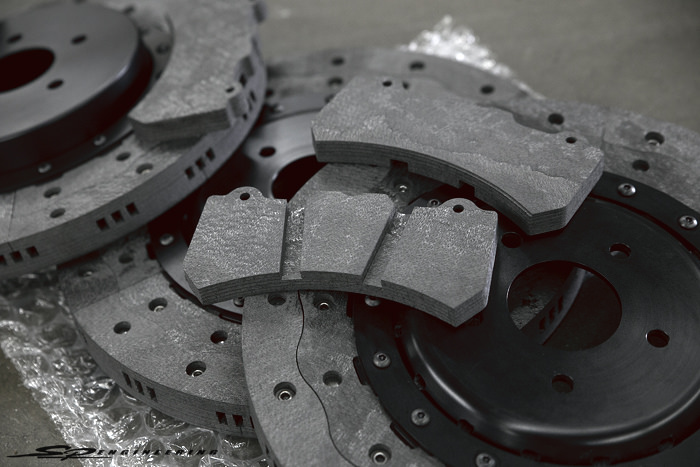

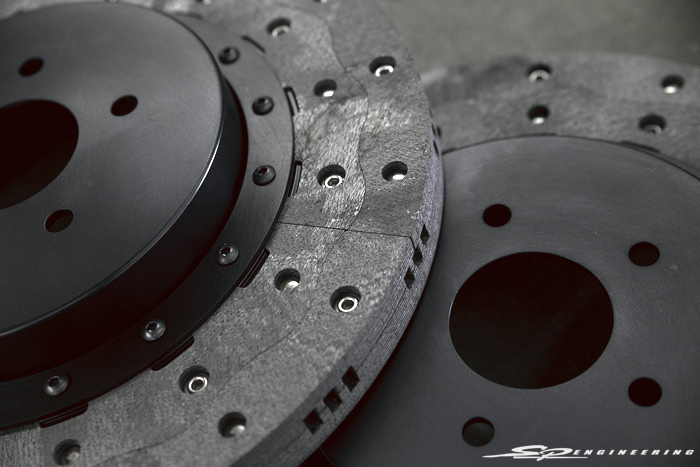

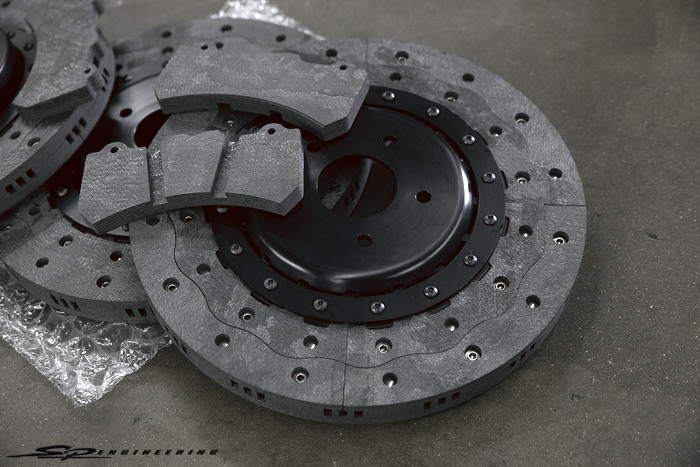

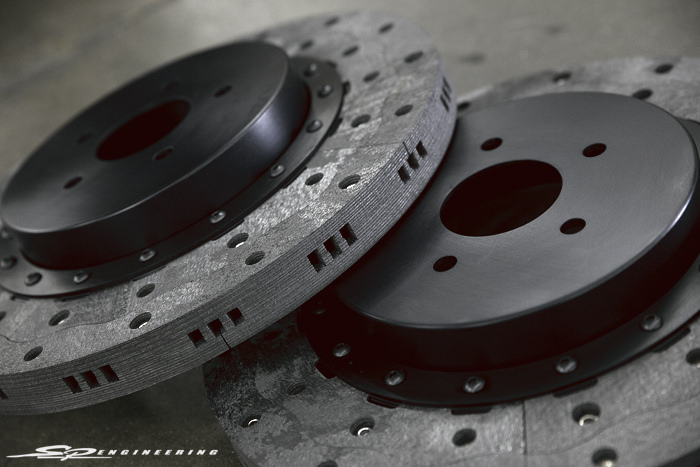

 RPS specializes in real carbon-carbon material brake rotors and pads.  While others are out there making the infamous carbon-ceramic material that everyone lusts over, RPS opted for making real carbon-carbon.  Carbon-carbon can be seen used in F1, Le Mans and Top Fuel/Funny Car drag racing.

RPS specializes in real carbon-carbon material brake rotors and pads.  While others are out there making the infamous carbon-ceramic material that everyone lusts over, RPS opted for making real carbon-carbon.  Carbon-carbon can be seen used in F1, Le Mans and Top Fuel/Funny Car drag racing.

 You might be wondering “Why carbon-carbon over carbon-ceramic?”.  RPS gives us some knowledgeable information that will make you say “Ooohhhhh”.

You might be wondering “Why carbon-carbon over carbon-ceramic?”.  RPS gives us some knowledgeable information that will make you say “Ooohhhhh”.

 “ RPS Brakes are made from real carbon-carbon material and not carbon-ceramic.  The manufacturing process used by RPS is so unique and economical it has received a US Patent.  Real carbon-carbon is used in Formula One, Le Mans, and Top fuel and Funny Car drag racing, not carbon-ceramic.  Carbon-ceramic brakes are becoming more popular on performance cars because compared to steel rotors, they weigh less and their surface has a longer wear life.  Also compared to real carbon-carbon their production time is a couple of days versus many months. ”  –  RPS Carbon Technology

RPS Brakes are made from real carbon-carbon material and not carbon-ceramic.  The manufacturing process used by RPS is so unique and economical it has received a US Patent.  Real carbon-carbon is used in Formula One, Le Mans, and Top fuel and Funny Car drag racing, not carbon-ceramic.  Carbon-ceramic brakes are becoming more popular on performance cars because compared to steel rotors, they weigh less and their surface has a longer wear life.  Also compared to real carbon-carbon their production time is a couple of days versus many months.

– RPS Carbon Technology

 “ However, it is precisely the fact that it takes months and not days to produce carbon-carbon that makes this material so special and superior to carbon-ceramic.  There is a great video on Youtube called “How It’s Made, Carbon Composite Brakes” that illustrates how ceramic brakes are made.  In short, carbon ceramic brakes are made using short chopped carbon fibers combined with powered resin with a thin ceramic coating.  First the fibers and resin are put in a mold at high temperature to make the core rotor which is then coated with ceramic particles to make a hard brittle surface.  There are three major problems with this process.  First short chopped pieces of carbon are in no way as strong as the 3D woven sheets of carbon used by RPS.  Using carbon-ceramic is like using a fiberglass chopper gun to lay up your boat versus hand laid sheets of material which is many times stronger. ”  –  RPS Carbon Technology

However, it is precisely the fact that it takes months and not days to produce carbon-carbon that makes this material so special and superior to carbon-ceramic.  There is a great video on Youtube called “How It’s Made, Carbon Composite Brakes” that illustrates how ceramic brakes are made.  In short, carbon ceramic brakes are made using short chopped carbon fibers combined with powered resin with a thin ceramic coating.  First the fibers and resin are put in a mold at high temperature to make the core rotor which is then coated with ceramic particles to make a hard brittle surface.  There are three major problems with this process.  First short chopped pieces of carbon are in no way as strong as the 3D woven sheets of carbon used by RPS.  Using carbon-ceramic is like using a fiberglass chopper gun to lay up your boat versus hand laid sheets of material which is many times stronger.

– RPS Carbon Technology

 “ Second, a short curing time of only a couple of days is used to try and convert the resin into pure carbon.  In reality it takes many months at very high temperature and pressure in a methane gas chamber to completely convert all of the resin into carbon and fill all of the voids left behind in the middle of the rotor when the resin is burned away.  This is why you must weigh each rotor after hard use to see if it has to be replaced because it has burned away from the inside out.  The carbon-carbon material used by RPS is cured properly for 6 to 8 months to ensure that there are no holes left behind.  The wear and life of these rotors can easily be measured without having to break out a gram scale. ”  –  RPS Carbon Technology

Second, a short curing time of only a couple of days is used to try and convert the resin into pure carbon.  In reality it takes many months at very high temperature and pressure in a methane gas chamber to completely convert all of the resin into carbon and fill all of the voids left behind in the middle of the rotor when the resin is burned away.  This is why you must weigh each rotor after hard use to see if it has to be replaced because it has burned away from the inside out.  The carbon-carbon material used by RPS is cured properly for 6 to 8 months to ensure that there are no holes left behind.  The wear and life of these rotors can easily be measured without having to break out a gram scale.

– RPS Carbon Technology

 “ The third problem with carbon-ceramic brakes is they are brittle and this a very delicate surface.  The surface on carbon-ceramic brake rotors are so delicate if you let your wheel hit the rotor when changing tires or you go off road during a track day and gravel or even small rocks hit and chip the rotor is must be replaced at great expense.  Because RPS’s entire carbon-carbon brake rotor is nothing but pure carbon molecules with no candy-like surface, dropped wheels and rocks will not damage the rotor to the point of replacement which is exactly why most all racing series make competitors remove their carbon-ceramic rotors and replace then with either steel or real carbon-carbon before being allowed to race. ”  –  RPS Carbon Technology

The third problem with carbon-ceramic brakes is they are brittle and this a very delicate surface.  The surface on carbon-ceramic brake rotors are so delicate if you let your wheel hit the rotor when changing tires or you go off road during a track day and gravel or even small rocks hit and chip the rotor is must be replaced at great expense.  Because RPS’s entire carbon-carbon brake rotor is nothing but pure carbon molecules with no candy-like surface, dropped wheels and rocks will not damage the rotor to the point of replacement which is exactly why most all racing series make competitors remove their carbon-ceramic rotors and replace then with either steel or real carbon-carbon before being allowed to race.

– RPS Carbon Technology

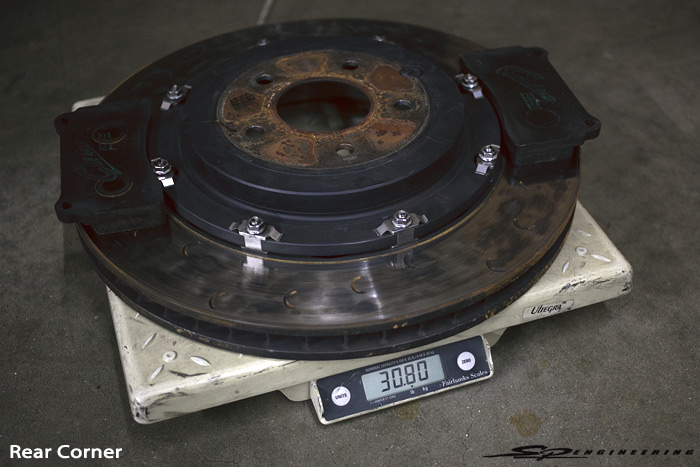

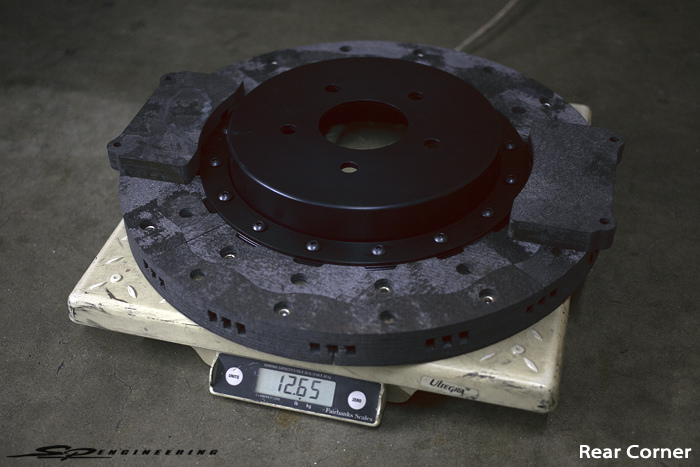

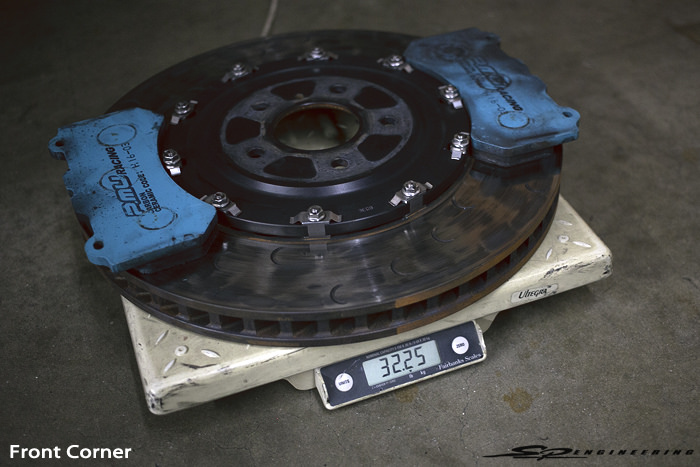

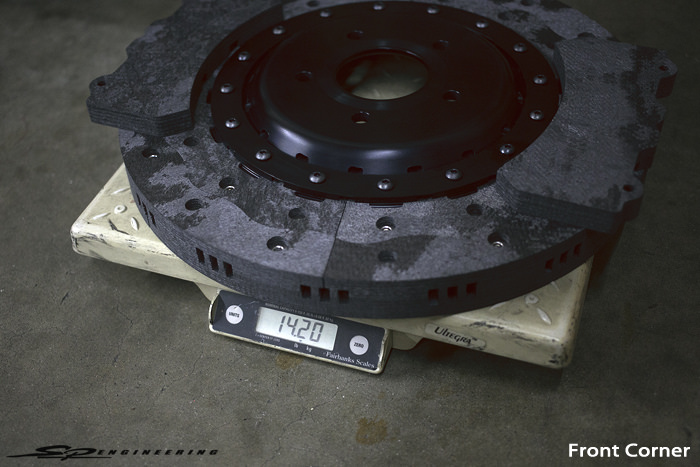

 Weight comparison between steel rotors and carbon-carbon rotors.  So much weight shed in each corner.  Very racing.  Wow.

Weight comparison between steel rotors and carbon-carbon rotors.  So much weight shed in each corner.  Very racing.  Wow.

 Sean will be putting these new brakes to test this weekend at No Fly Zone event in Shafter, CA.  Please contact david (david@sp-power.com / 626-333-5398) for questions and/or ordering!  Thanks for looking!  – SP

Sean will be putting these new brakes to test this weekend at No Fly Zone event in Shafter, CA.

Please contact david (david@sp-power.com / 626-333-5398) for questions and/or ordering!

Thanks for looking!

– SP
